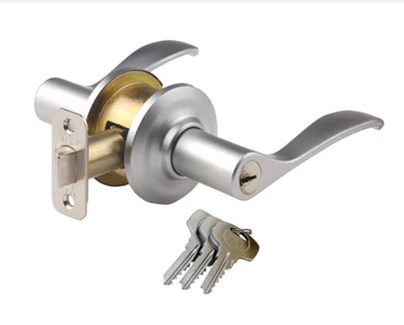

Yale Levertype Lockset

Dimension: 415 x 380 x 440mm
Backset: 60mm - 70mm
Door thickness: 35 - 45mm
Roses diameter: 65mm
Material for strike plate & face plate: Steel
Material for lever: Zinc alloy
Material for rose: Brass
No. of keys: 3 pcs of nickel keys - per keyed entrance
Material for cylinder housing: Zinc alloy
Steel radius or square corner faceplate and strike plate.
Grade 3 standard leverset, tested to 200k cycles, 96 hrs neutral salt spray test for exterior parts.
Unlock lever torque at 20 Nm and locked lever torque at 25Nm.
Levers turn angles 45 deg. to unlock except L531x and L532x turns 75 degree to unlock.
